COMPRESSOR WARRANTY NOTICE: Compressors need to be replaced along with new expansion valve and receiver drier units. Work must be done by a professional company providing a work order stating all units were replaced simultaneously and work order must state that the air conditioning system was flushed and back-flushed. Any questions, please ask.

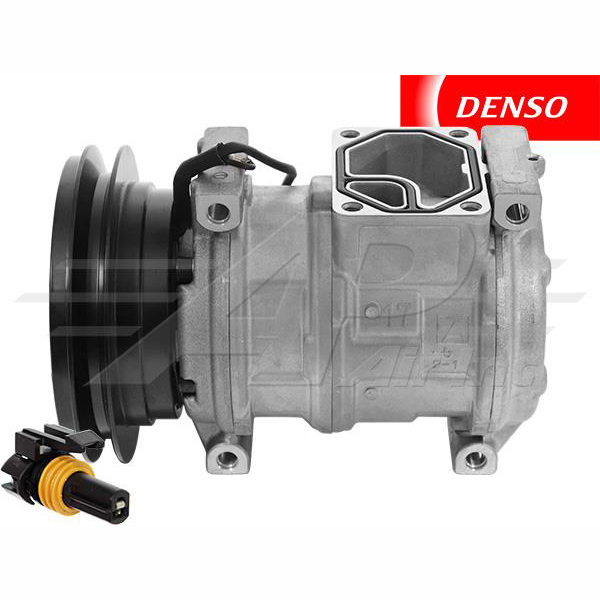

OE Denso Compressor 10PA17C – 146mm, 1 Groove Clutch, 12V, Must Use Original Manifold
Replaces RE64024, TY6789, 447100-8150, SE501472, 447100-8154, 503-125
Fits JOHN DEERE: Must Use Original Manifold
5220, 5320 – All serial numbers, 5200, 5300, 5400, 5500, 5210, 5310
5075E
Must Use Original Manifold
Specifications
| COMPRESSOR TYPE | 10PA17C |
| HEAD TYPE | N/A |
| OIL TYPE | ND8 Pag Oil |
| CLUTCH DIAMETER | 5.748″, 146mm |
| VOLTAGE | 12 |
| GROOVES | 1 |
| BELT WIDTH | 1/2″ |
| OIL QUANTITY | 7.77 oz, 230cc |
| GAUGE LINE | 54mm, 2.125″ |
