UJD999626 Compressor Denso – Replaces RE284680
$550.00
COMPRESSOR WARRANTY NOTICE: Compressors need to be replaced along with new expansion valve and receiver drier units. Work must be done by a professional company providing a work order stating all units were replaced simultaneously and work order must state that the air conditioning system was flushed and back-flushed. Any questions, please ask.

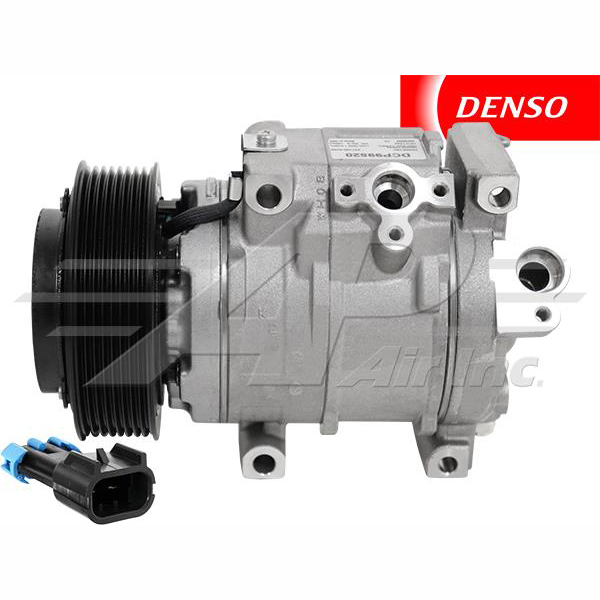

OE Denso Compressor 10SRE18C – 125.5mm, 8 Groove Clutch, 12V
Replaces RE284680, SE502697, 503-166
Fits JOHN DEERE:
6105D,
6115D(SN 050001 & above),
6130D(SN 050001 & above),
6140D,
6105M, 6110M, 6115, 6120M, 6125M, 6130M, 6140M, 6150M, 6155M, 6170M, 6175M,
6105R, 6115R, 6125R, 6140R, 6145R, 6150R, 6155R, 6170R, 6175R, 6190R, 6210R
5085E, 5100E,
5101E(SN 340001 and Above),
5065M(SN 347000 and Above)
5095M(SN 347000 and Above),
5100M, 5100MH
Specifications
| COMPRESSOR TYPE | 10SRE18C |
| HEAD TYPE | Direct Mount |
| OIL TYPE | R134 Pag 46 |
| CLUTCH DIAMETER | 125.5mm, 4.941″ |
| VOLTAGE | 12 |
| GROOVES | 8 |
| BELT WIDTH | Serpentine |
| COIL POSITION | N/A |
| GAUGE LINE | 64mm, 2.52″C |
