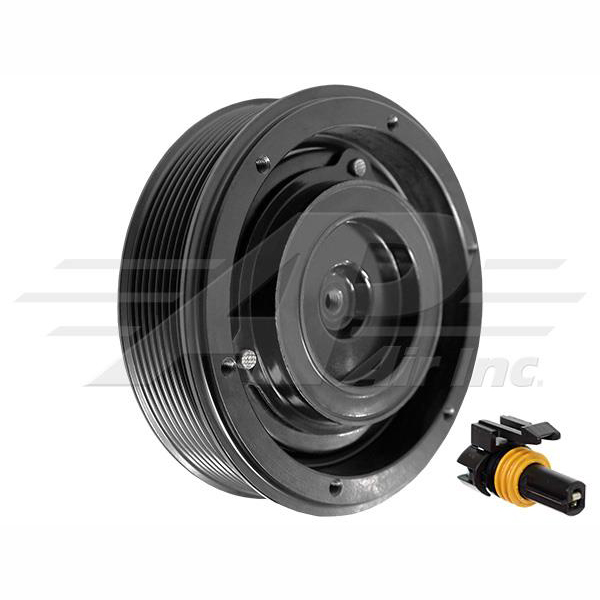

UJD99036 Compressor Clutch – Replaces RE52508
$125.00
Denso Clutch 10PA17C – 145mm, 8 Grooves, 12 Volt
OE Complete Clutch Kit with Hub, Pulley, Coil, and Dust Cover – Rubber Style Hub
Replaces RE52508, 600-3020
Fits JOHN DEERE:
5410, 5510, 5220, 5320, 5420, 5520,
5225, 5325, 5425, 5525, 5625
5101E,
7200, 7210, 7400, 7410, 7510, 7600, 7610, 7700, 7710, 7800, 7810, 7820, 7920,
8100, 8110, 8200, 8210, 8300, 8310, 8400, 8410,
8120, 8220, 8320, 8420, 8520,
8130, 8230, 8330, 8430, 8530,
9100, 9120, 9200, 9220, 9300, 9320, 9400, 9420, 9520,
Specifications
| COMPRESSOR TYPE | 10PA17C |
| CLUTCH DIAMETER | 145mm, 5.708″ |
| DIMENSION B | 29mm, 1.141″ |
| DIMENSION C | N/A |
| COIL VOLTAGE | 12 |
| NUMBER OF GROOVES | 8 |
| GROOVE WIDTH | PV8 |
| COIL NUMBER | 610-340 |
| BEARING NUMBER | 440-948 |
| Condition |
|---|
