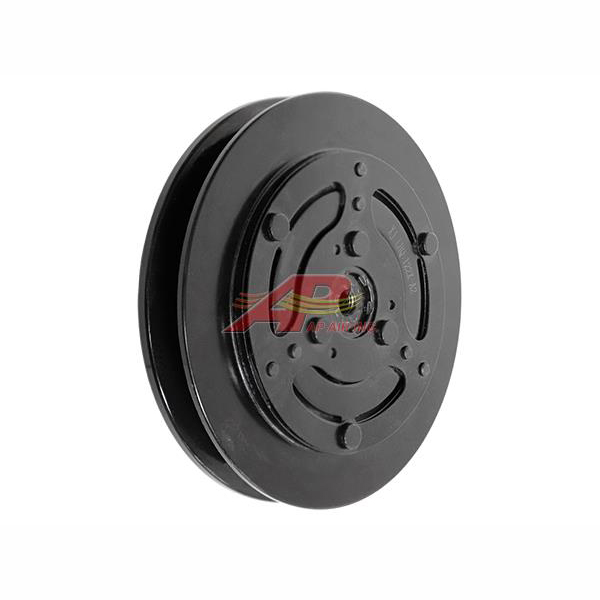

KU90199 Compressor Clutch – Replaces 6A671-97310
$175.00
SCSA06C Clutch with Coil 4.8″, A 1/2″ Single Groove
Fits 503-170 or 503-1703 or 503-175 or 503-1753 Compressors, OR SCS06 and SCSA06C Body Compressors
Replaces number 6A671-97310, 600-3070
Fits KUBOTA: M4900, M5700, M120, M9000, RTV1100, RTV1100CR (also Recreation Model 9 2009-2011 ATV And Model X With Sliding Window), RTV1100CW (Also Recreation Model 9 2009-2011 ATV And Model X With Sliding Window)
Splined Type Shaft
Complete with Coil, Hub and Pulley
Specifications
| BEARING I.D. | 1.181″ – .30mm |
| BEARING WIDTH | .787″ – .20mm |
| COMPRESSOR TYPE | SCSA06C |
| CLUTCH DIAMETER | 4.8″, 121.94mm |
| DIMENSION B | N/A |
| DIMENSION C | N/A |
| COIL VOLTAGE | 12 |
| NUMBER OF GROOVES | 1 |
| GROOVE WIDTH | A1, 1/2″ |
